100A direct load
Work with 3P4W/3P3W/1P2W
4 Modules 72mm wide
Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
Bidirectional measurement
2 Pulse outputs

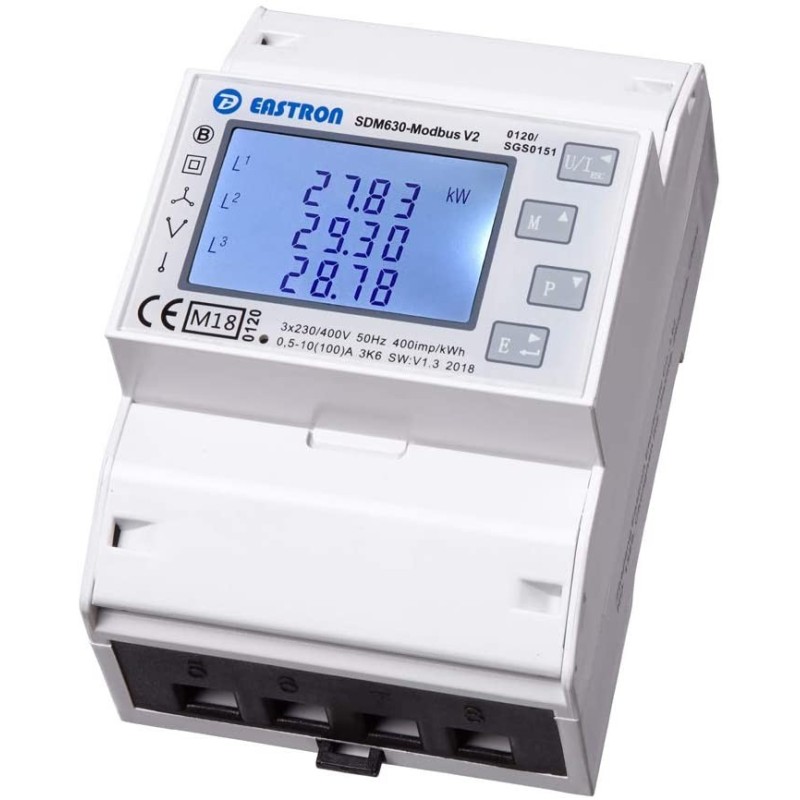

SDM630 series measures and displays the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic etc. Bi-directional measurement makes it an ideal choice for Solar PV measurement.
The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (Mbus/Modbus) are provided for remote monitoring.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
Data sheet
