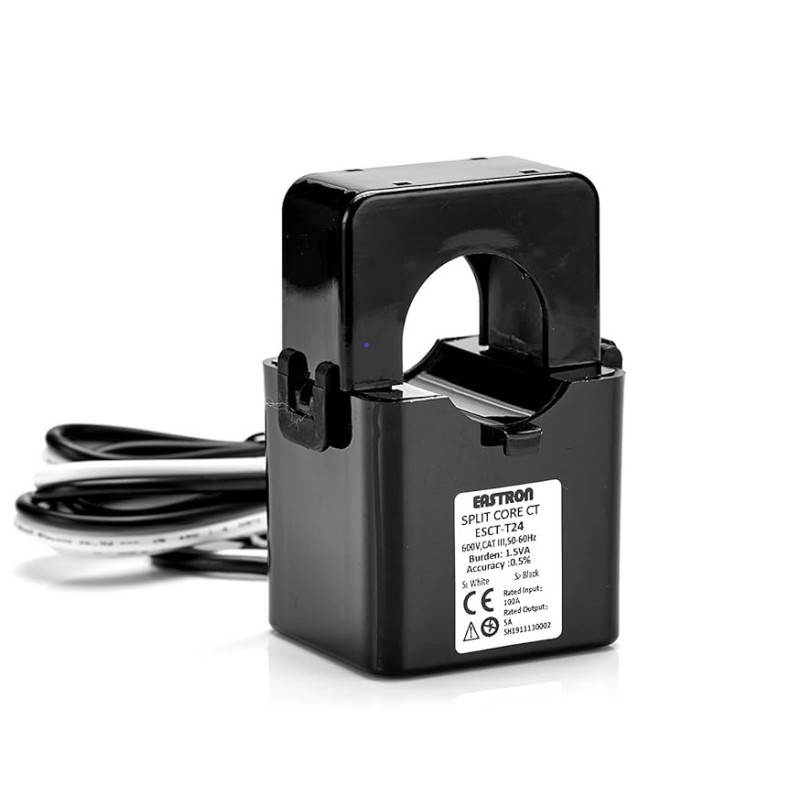

ESCT-T24 Power Transformer 100A / 5A SPLIT CORE (APRIBILE)
AS AN ACCOUNTANT EASTRONSDM630CT OTHERS
• Nucleus divided
• Safe operation
• Reduced dimensions
• Very easy to mount
• Large internal window
• Wide range of sizes for all existing installations
• Primary current from 100 A
• Secondary output 5A
Description
The EastronESThe CT-T series of split core current transformers is designed for quick and easy installation. The split core design allows contactless current measurements through magnetic field induction without requiring the primary cable to be disconnected from the line and disconnected for the installation of the TA. This method allows for safer, easy and portable current measurement. An internal precision load resistor on the secondary winding of the TA provides a safe low voltage output and allows the safe opening of the secondary circuit.
Specifications
Model Number : ESCT-T24
- Use :
-
Current
- Phase :
-
Separate
- Structure of the reel Other
-
- Number of coils :
-
Other
- Frequency :
-
50Hz/60Hz
- Rated current :
-
from 100A
- Window Size :
-
35,7 mm
- Wire cable :
-
Cable with 1 meter sheath
- Exit :
-
Exit 5A
- Colour :
-
Black
- Certification :
-
EC
- Insulation voltage 600 VAC
-
- core :
-
Nucleus Permalloy
- Coil :
-
PBT
Application
* Measurement, monitoring and protection of current for wiring and electrical equipment
* Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air conditioning and automation equipment.
* Current, power and energy monitoring device
* Relay protection device
