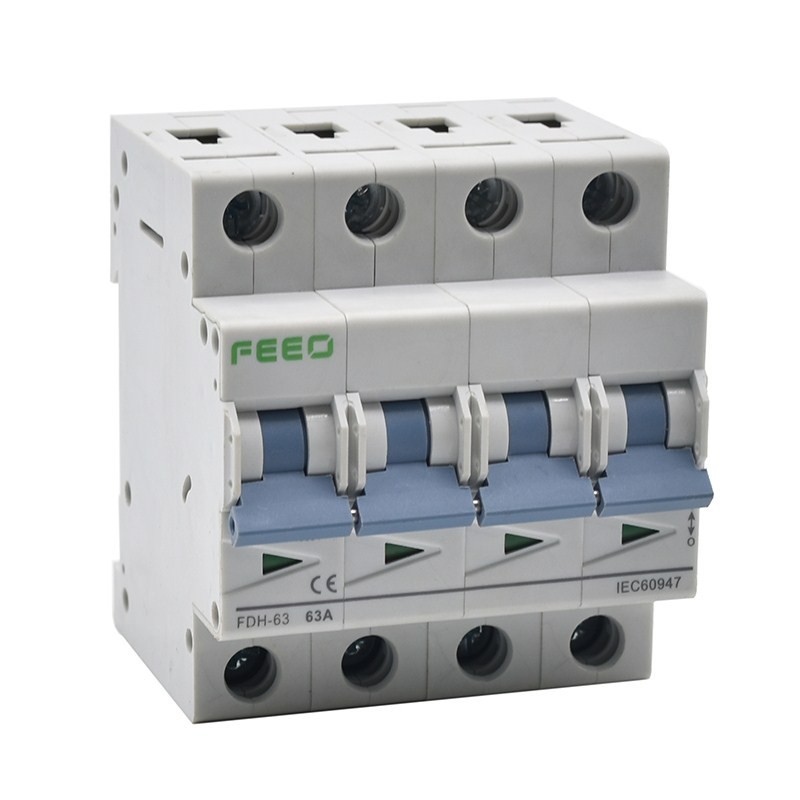

FEEO research and development FDH-63 4P DC Mini Isolator Switch is mainly used solar power distribution system, namely pv junction box, etc. direct current electrical equipment. Rated voltage 1200 VDC, rated current 63 A,science of arcing design solar power generation system reliable operation.
|
Electrical Characteristics |
|
||||
|
Code |
FDH-63 |
||||
|
Standard |
IEC60947-3/GB14048.3 |
||||
|
Pole |
1P |
2P |
3P |
4P |
|
|
Rated voltage |
EU |
250V DC |
550V DC |
750V DC |
1000V DC |
|
Max current |
U |
63A |
|||
|
Rated current |
In |
16，32，63 |
|||
|
Rated insulation voltage |
UI |
1200V DC |
|||
|
Rated impact voltage |
4KV |
||||
|
Life |
|||||
|
Mechanical life |
2000 |
||||
|
Electric life |
4000 |
||||
|
Isolation function |
Yes |
||||
|
Installation |
|||||
|
Degree of protection |
IP20 |
||||
|
Connection |
2.5-25mm2 |
||||
|
Temperature |
-25℃~+70℃ |
||||
|
Muggy |
Type 2 |
||||
|
Shake |
2.6 |
||||
|
Impact |
2.27 IEC60068 |
||||
Data sheet
