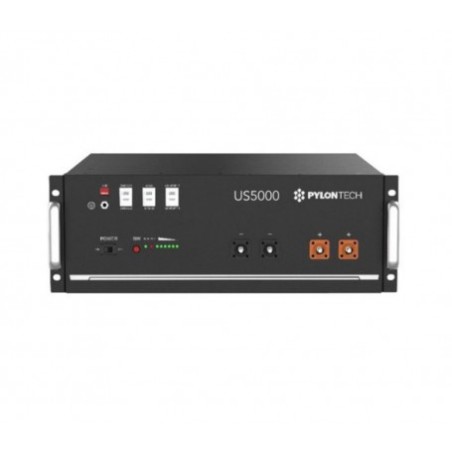

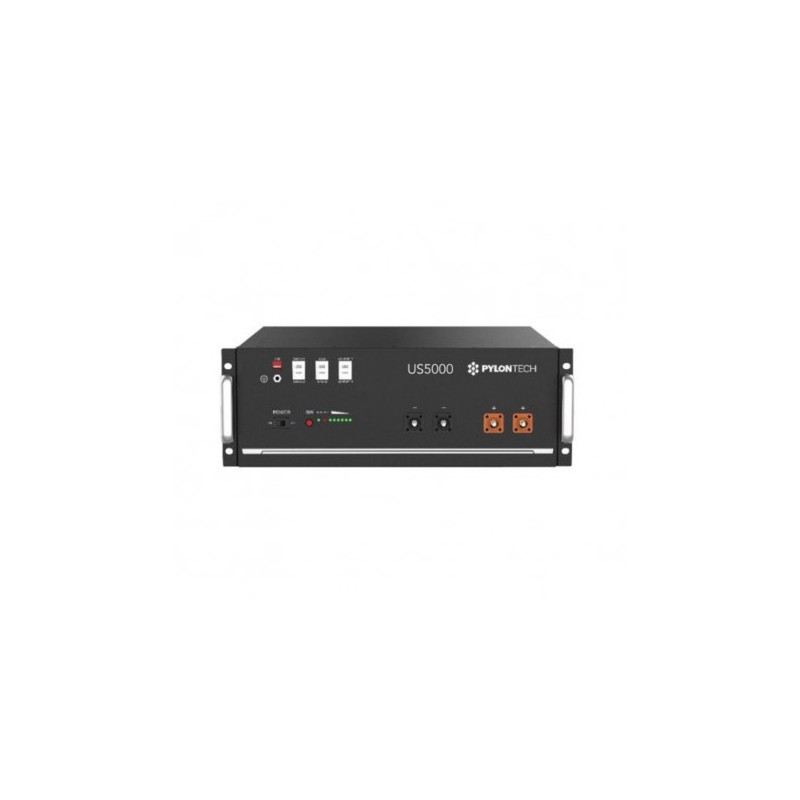

Pylontech US5000 4.8Kw 100AH Lithium Battery LifePo4 48 Volt Accumulation Photovoltaic Storage

US5000
€1,640.10
€1,430.00 Save €210.10
Tax included
Quantity
Last items in stock

Description

Lithium battery

The US3000C lithium battery from Pylontech represents the latest technological frontier for photovoltaic storage applications, with an extended 10-year warranty.

The simplicity and modularity of the 3.55 kWh capacity US3000C makes it suitable for creating small and large capacity storage systems that can be expanded according to current and future energy needs.

The maximum instantaneous charge and discharge power and the discharge depth up to 90% make it suitable for applications where there are strong cues, such as heat pumps or induction cookers.

LFP-type lithium technology also has the following advantages:



longer life cycle, which exceeds 6000 cycles, corresponding to approximately 11 years of work, with end-of-life capacity equal to 80%;

the more stable and safer internal molecular structure of the LFP batteries allows an increase in the combustion temperature of 600 °C compared to the 300 °C for NMC and LCO;

ease of expansion to obtain storage of important dimensions;

greater depth of discharge (DOD 95%);

compact and modular design that allows for easy installation / upgrade; possibility of operating in different temperature conditions;

Advanced BMS that allows you to report alarms in real time.


FOR CORRECT USE PLEASE CONNECT THE BATTERIES TO THE INVERTER USING ONLY THE ORIGINAL CABLE KIT SOLD SEPARATELY




Benefits
  • Beyond6000 cycles with 95% DoD
  • The Dcompact and fashionable designFits into your home environment
  • The modular design provides the possibility ofbe able to choose the capacity
  • CompatibleWith most hybrid inverters available
  • A simple "buckle" fastening allows installation time and costs to be reduced to a minimum
  • Safety Cert.TÜV CE UN38.3 TLC



    Template

    US3000C

    Voltage [V]

    48

    Rated current [Ah]

    74

    Nominal power [Wh]

    3550

    Working voltage [V]

    45...54

    Charging voltage [V]

    52.5…54

    Maximum peak discharge current [A]

    100 Ax1Min

    Maximum peak charging current [A]

    100 Ax1Min

    DOD [%]

    90

    Communication bus

    RS232, RS485, CAN

    Communication protocol

    YD/T 1363.3-2005

    Dimensions [mm]

    442x420x132

    Weight [kg]

    32

    Duration at 25 °C

    10+ years

    Life Cycles

    >6000 60% EOL - 90% DoD

    Charge maintenance duration

    6 months with battery off

    Discharge temperature [°C]

    -10…50

    Charging temperature [°C]

    0…50

    Storage temperature [°C]

    -40…80

    Seismic legislation

    GR-1089

    Transportation regulations

    UN 3090

    EMC regulation

    IEC 61000, EN 55022

    Environmental legislation

    GB/T 2423

    Brand names

    TÜV, CE, UN38.3, TLC

    Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy plant
    The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, please visit the Inverter for EU countries section of the website
    YOU WILL FIND THE FORM HERE
    https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
    THE PRODUCT WILL NOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED
    AT THE EMAIL ADDRESS ebay.barbasrl@gmail.com or by fax at 0545030125

Product Details
PYLONTECH
US5000
2 Items

Data sheet

Brand
PYLONTECH
New / Used
New
Warranty
7 years
Cod. Art.
