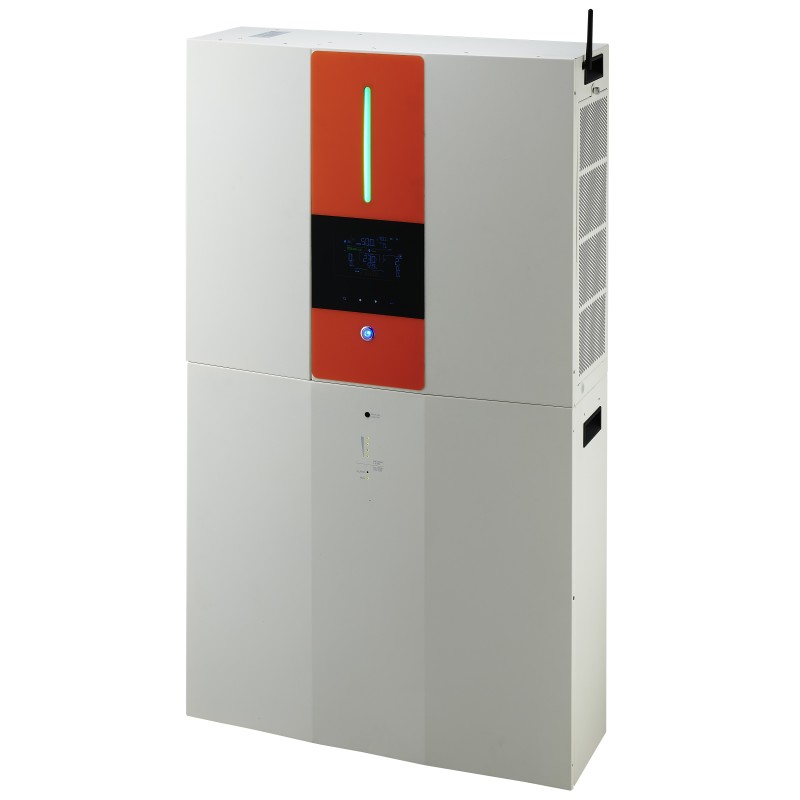

Voltronic ESS510 Energy Storage System Inverter 5.5Kw and Lifepo4 Battery 5.12Kw

ESS5100
€2,835.00
€2,435.00 Save €400.00
Tax included
Quantity

Description

Voltronic ESS510 Energy Storage System Inverter 5.5Kw and Lifepo4 Battery 5.12Kw
THIS PRODUCT CAN ONLY BE SOLD IN GERMANY

- LifePO4 Integrated Inverter and Battery Module - Pure sine wave output -Self-consumption and Feedback to the Network. -Programmable power priority for PV, battery or grid -User-adjustable battery charging current -Multiple programmable operation modes: grid-tie, off-grid and grid-tie with backup -Built-in timer for various on/off operation modes -Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi • Monitoring software for real-time status display and control - Improves AC/solar charger to 100 A -Scalable lithium-ion battery expansion (up to 10 5.12kw batteries) -VDE 4105 and other certifications for on-grid installations

ESS510 ENERGY STORAGE SYSTEM

MODEL

ESS 5.5KW

Maximum PV Input Power

6500W

Rated Output Power

5500W

Maximum Charging Power

2880W

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

360VDC / 500VDC

Start-up Voltage / Initial Feeding Voltage

116VDC / 150VDC

MPP Voltage Range

120VDC ~ 450VDC

Number of MPP Trackers / Maximum Input Current

2/2 x 13A

GRID OUTPUTS

Nominal Output Voltage

208/220/230/240VAC

Output Voltage Range

184 - 264.5VAC*

Max. Output Current

23.9A*

Maximum Conversion Efficiency (DC/AC)

96%

European Efficiency @ Vnominal

95%

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 - 140VAC / 180VAC

Acceptable Input Voltage Range

170 -280VAC

Maximum AC Input Current

40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

208/220/230/240VAC

Maximum Conversion Efficiency (DC/AC)

93%

BATTERY & CHARGER

Nominal DC Voltage

48VDC

Maximum Charging Current

100A

PHYSICAL

Dimension, DXWXH (mm)

214x621x500

Net Weight (kgs)

25

BATTERY MODULES

ESS II-4810

CAPACITY

5120Wh

PARAMETERS

Normal Voltage

51.2VDC

Full Charge Voltage(FC)

56V

Full Discharge Voltage(FD)

42V

Typical Capacity

100 Ah

Max Continuous Discharging Current

150A

Max Discharging Current

192A at 1min

Protection

BMS, breakers

Charge Voltage

56V

Charge Current

20A (0.2C)

Maximum charge current

50A (0.5C)

Standard charge method

0.2C DC (Constant current) charge to FC, CV (Contstant voltage FC) charge till charge current decline to <0.05C

Inner Resistance

≤20m ohms

PHYSICAL

Dimension, DXWXH (mm)

214x621x550

Net Weight (kgs)

55

*These figures may vary depending on different AC voltage and country regulation.

Product specifications are subject to change without further notice
