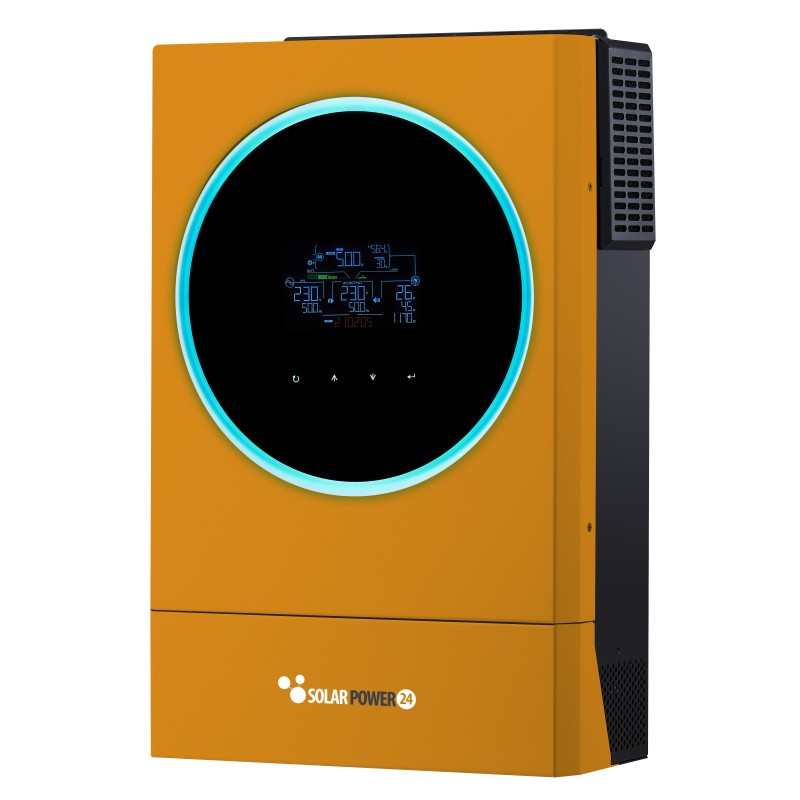

Reference: HYVII5K5K-48EU
Brand: SOLARPOWER24
• Alternating Current Power 6kw
• Installable Power Panels 6kw
• Support for 48V battery packs
• Built-in Wi-Fi for mobile monitoring (Android app available)
• Reserved communication port for BMS (RS485) support x Pylontech US2000/US3000/US5000, SP24, Voltronic LIO II 4810, ESS II 4810, Yilink
• Supply the load from the grid or from the PV, even if the battery is not available
• Selectable high power charge current
• Selectable input voltage range for home appliances and personal computers
• Compatible with mains power or generator input
• Parallel operation with up to 9 units (parallel kit included)
Table 1 Line mode specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Waveform of the input voltage |
Sine (utility or generator) |
|
|
Rated input voltage |
230Vac |
|
|
Low loss Voltage |
170Vac ± 7V ( UPS ) 90Vac± 7V ( Appliances ) |
|
|
Low loss Return voltage |
180Vac ± 7V ( UPS ) ; 100Vac ± 7V ( Appliances ) |
|
|
High loss Voltage |
280Vac ± 7V |
|
|
High loss Return voltage |
270Vac ± 7V |
|
|
Maximum AC input voltage |
300Vac |
|
|
Rated input frequency |
50Hz / 60Hz (auto detect) |
|
|
Low loss rate |
40±1Hz |
|
|
Low loss Return frequency |
42±1Hz |
|
|
High loss rate |
65±1Hz |
|
|
High loss Return frequency |
63±1Hz |
|
|
Output short circuit protection |
Line mode: automatic switch Battery mode: electronic circuits |
|
|
Efficiency (line mode) |
> 95% (nominal R load, fully charged battery) |
|
|
Transfer time |
10ms typical (UPS); 20ms typical (household appliances) |
|
|
Output power derating: When the AC input voltage drops to 95V or 170V depending on the models, the output power will be reduced. |
||
Table 2 Inverter mode specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Rated output power |
5KVA/5KW |
6KVA/6KW |
|
Waveform of the output voltage |
Pure sine wave |
|
|
Output voltage regulation |
230Vac ± 5 % |
|
|
Output frequency |
60Hz or 50Hz |
|
|
Maximum efficiency |
90% |
|
|
Overload protection _ |
5s@≥150% load ; 10s@110%~150% load |
|
|
Peak capacity |
Nominal power 2* for 5 seconds |
|
|
Nominal DC input voltage |
48 Vdc _ |
|
|
Cold start voltage |
46.0 Vdc |
|
|
Warning DC low voltage |
|
|
|
@ load < 20% |
44.0 Vdc |
|
|
@ 20% ≤ load < 50% |
42 . 8 Vdc |
|
|
@ load ≥ 50% |
40 . 4 Vdc |
|
|
Low DC Warning Return Voltage |
|
|
|
@ load < 20% |
46.0 Vdc |
|
|
@ 20% ≤ load < 50% |
44 . 8 Vdc |
|
|
@ load ≥ 50% |
42 . 4 Vdc |
|
|
Low DC cut-off voltage |
|
|
|
@ load < 20% |
4 2.0 Vdc |
|
|
@ 20% ≤ load < 50% |
40 . 8 Vdc |
|
|
@ load ≥ 50% |
38 . 4 Vdc |
|
|
High RE Recovery voltage |
64Vdc |
|
|
High DC cutoff voltage |
66Vdc |
|
Table 3 Charging mode specifications
|
Utility charging mode |
|||||
|
INVERTER MODEL |
5KW |
6KW |
|||
|
Charging current (UPS) @ Rated input voltage |
100A _ |
120A |
|||
|
Bulk charge voltage |
Battery flooded |
58.4 |
|||
|
AGM/Gel battery |
56.4 |
||||
|
Fluctuating charge voltage |
54 Vdc |
||||
|
Overload protection |
66Vdc |
||||
|
Charging algorithm |
3 -Step |
||||
|
charge curve |
|||||
|
Solar charging mode (MPPT type) |
|||||
|
INVERTER MODEL |
5KW |
6KW |
|||
|
Nominal power |
5000W _ |
6000W |
|||
|
Maximum. Charging current |
100A |
120A |
|||
|
Maximum. Open circuit voltage of the photovoltaic field |
500Vdc |
||||
|
PV array MPPT voltage range |
120Vdc~430Vdc |
||||
|
Maximum. Input current |
27A |
||||
670
Table 4 General specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Security certification |
THERE IS |
|
|
Operating temperature range |
from -1 0°C to 50°C |
|
|
Storage temperature |
-15°C ~60°C |
|
|
H humidity |
Relative humidity 5% to 95% (non-condensing) |
|
|
Dimensions ( D * W * H) , mm |
140x295x468 _ _ |
|
|
Net weight, kg |
1 1 |
12 |
Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy plant
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, please visit the Inverter for EU countries section of the site
YOU WILL FIND THE FORM HERE
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
THE PRODUCT WILL NOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED
TO THE EMAIL ADDRESS moduloiva@solarpower24.it or by fax to 0545030125
Data sheet
