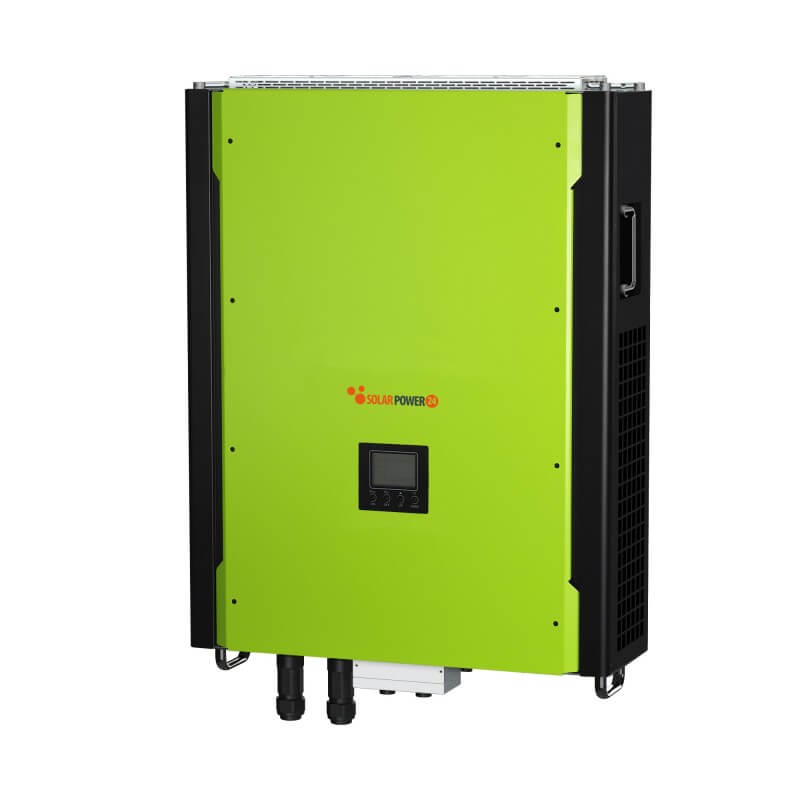

SP24 Infinisolar 3P 15Kw Three-phase Hybrid Solar Inverter

HYT15K225K-48DE
€2,650.00
Tax included
Quantity
Last items in stock

Description

SolarPower 24 Infinisolar 3P 15Kw Three-phase Hybrid Solar Inverter

Main Technical Features:

  • Pure sine wave inverter
  • Self-Consumption
  • Programmable Usage Priority for Solar, Battery or Grid
  • Wide selectable charge currents for compatibility with different battery types
  • Various Usage Modes for great flexibility: On-Grid, Off-Grid, Hybrid
  • Internal clock for various on/off options
  • Multiple communication ports for USB, RS-232, Modbus and SNMP
  • Real-time monitoring and control software
  • Possibility of Parallel Connection up to 6 units
TEMPLATE ONLY HY 3P 15KW
Phases Three-phase 3 in / 3 out
Panel Installable Power 22500W
AC Output Power 15000W
Maximum Power of Battery Charger 14400W
ON-GRID MODE
SOLAR FEATURES
Nominal Voltage/Maximum Voc 720VDC / 900VDC
Start-Up Voltage/Production Voltage 320VDC / 350VDC
MPPT Operating Range 400VDC ~ 800VDC
Number of MPPT / Maximum Power 2 / 1:A x 37.65A - 1:B x 18.6A
AC OUT
Nominal AC Output Voltage 230VAC (PN) / 400VAC (PP)
AC Voltage Range 184 - 265 VAC* per phase
Rated AC Output Current 14.5A per phase
power factor > 99%
EFFICIENCY
Maximum DC/AC Conversion Efficiency 96%
European Efficiency @ Vnominal 95%
OFF-GRID MODE
SOLAR FEATURES
Maximum voice 900VDC
MPPT Operating Range 400VDC ~ 800VDC
Number of MPPT / Maximum Power 2 / 1:A x 37.65A - 1:B x 18.6A
BATTERY MODE OUTPUT (AC)
Nominal AC Output Voltage 230VAC (PN) / 400VAC (PP)
Wave type Pure Sine Wave
Maximum DC/AC Conversion Efficiency 91%
HYBRID MODE (HYBRID)
SOLAR FEATURES
Nominal Voltage/Maximum Voc 720VDC / 900VDC
Start-Up Voltage/Production Voltage 320VDC / 350VDC
MPPT Operating Range 400VDC ~ 800VDC
Number of MPPT / Maximum Power 2 / 1:A x 37.65A - 1:B x 18.6A
AC OUT
Nominal AC Output Voltage 230VAC (PN) / 400VAC (PP)
AC Voltage Range 184 - 265 VAC* per phase
Rated AC Output Current 21.7A per phase
BATTERY MODE OUTPUT (AC)
Nominal AC Output Voltage 230VAC (PN) / 400VAC (PP)
Wave type Pure Sine Wave
Maximum DC/AC Conversion Efficiency 91%
BATTERIES AND CHARGING
Nominal voltage 48VDC
Maximum Charging Current Default 60A, 10A - 300A (Adjustable)
DIMENSIONS AND WEIGHT
Dimension, PXLXH (mm) 219x650x820
Net Weight (kgs) 62.0
INTERFACES
Communication port RS-232/USB and CAN
Smart Slots Optional SNMP, Modbus, AS-400
ENVIRONMENT
Operating temperature -10 to 55 degrees C.
Altitude 0-1000 meters **
** the power decreases by 1% every 100m above 1000m

Product Details
SOLARPOWER24
HYT15K225K-48DE
8050030420103
2 Items

Data sheet

MPN
IN-SP-HYT15K225K-48
Brand
SOLARPOWER24
EAN
8050030420103
New / Used
New
Product weight
62Kg
Product size
LxWxH (in mm) 500x167x622
Warranty
24 Month
Type of Energy
Three-phase (400V)
Power Installable Panels
14850W
MPPT number
2
Maximum VOC of String
900VDC
MPPT Operating Voltage
400VDC - 800VDC
Battery voltage
48VDC
Power of battery charger with the Solar MAX
200A
