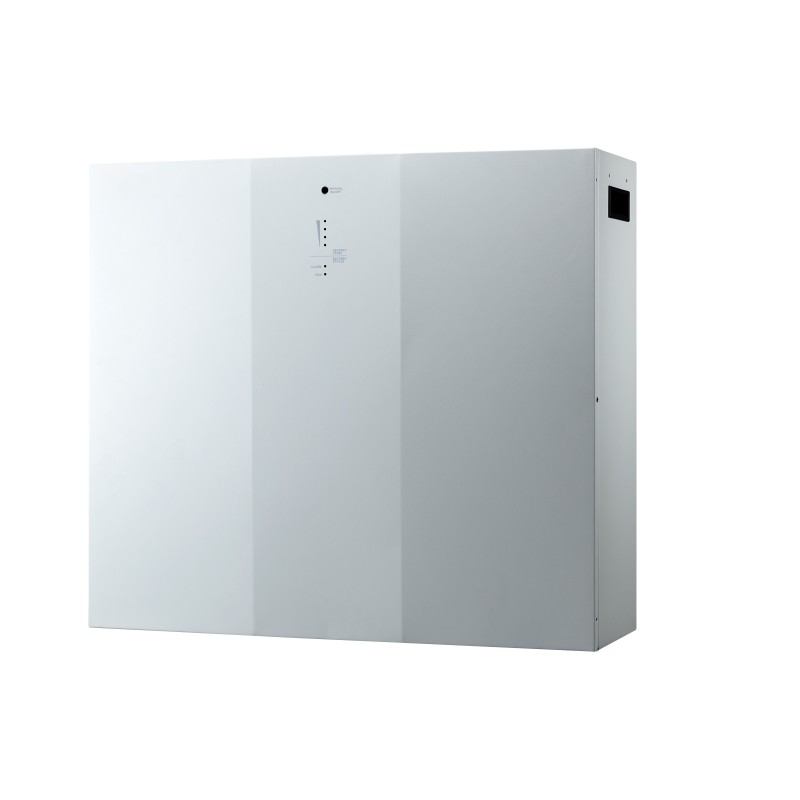

copy of Voltronic ESS II-4810 Lifepo4 Battery Module 5.12Kw for ESS-810

ESS II-4810 LIFEPO4 BATTERY 5,12KW 48V

BATTERY MODULES

ESS II-4810

CAPACITY

5120Wh

PARAMETERS

Normal Voltage

51.2VDC

Full Charge Voltage(FC)

56V

Full Discharge Voltage(FD)

42V

Typical Capacity

100 Ah

Max Continuous Discharging Current

150A

Max Discharging Current

192A at 1min

Protection

BMS, breakers

Charge Voltage

56V

Charge Current

20A (0.2C)

Maximum charge current

50A (0.5C)

Standard charge method

0.2C CC (Constant current) charge to FC,
CV (Contstant voltage FC) charge till charge current decline to

Inner Resistance

≤20m ohms

PHYSICAL

Dimension, DXWXH (mm)

214x621x550

Net Weight (kgs)

55

*These figures may vary depending on different AC voltage and country regulation.

Product specifications are subject to change without further notice
