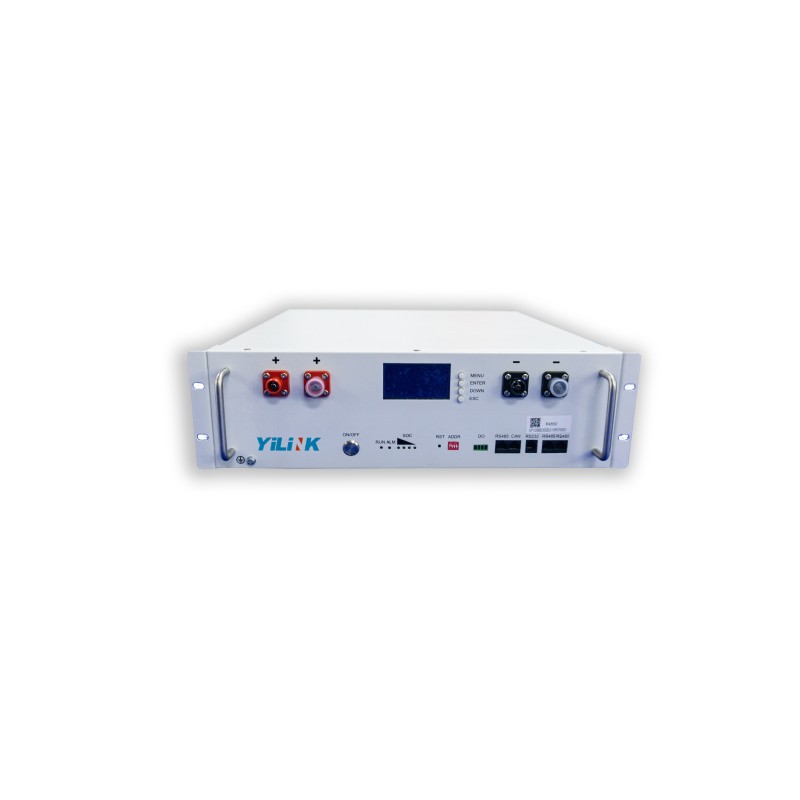

Yilink LifePo4 Battery 2.4Kw 50A 48v 3U Rack version
Equipped with its own BMS, it can be used with any 48v inverter.
Possibility of connecting BMS communication cable to the inverters Voltronic (all models equipped with BMS port) such as Axpert King, Vm III, Vm IV, Mks III, Mks IV, Axpert Max (all 48v models) and Max II
|
No.
|
Items
|
General Parameters
|
Remark
|
|
|
1 |
Combination method |
15S |
|
|
|
2 |
Nominal Voltage |
48V |
|
|
|
3 |
Rated Capacity |
Typical |
50Ah |
|
|
Minimum |
50Ah |
|||
|
4 |
Energy |
2400Wh |
|
|
|
5 |
Factory Voltage |
48~51V |
Mean Operations Voltage |
|
|
6 |
Voltage at end of Discharge |
37.5~42V |
Discharge Cut-offs Voltage |
|
|
7 |
Voltage at end of Charge |
52.5~55.5V |
Charge Cut-offs Voltage |
|
|
8 |
Standard charge |
Constant Current 10A Constant Voltage if it's No.7 0.02CA cut-off |
Charge time : Approx 5~6 h |
|
|
9 |
Limiting current |
20A |
BMS Limited (Charge current is ≥50A to open the current Limit) |
|
|
10 |
Standard discharge |
Constant current：10A end voltage if it's NO.6 |
|
|
|
11 |
Maximum Continuous Charge Current |
50A |
50ºC≥T≥5ºC |
|
|
12 |
Maximum Continuous Discharge Current |
50A |
55ºC≥T≥0ºC |
|
|
13 |
Operations Temperatures Range |
Charge:0~55℃ |
60±25%R.H. No matter what fashions the battery is in, ounces the temperatures is found to exceed the absolute temperatures range, stop charging or discharging immediately |
|
|
Dtheschtorgand:-20~60℃ |
||||
|
14 |
Storage Temperatures Range |
Less than 6 months: -10~35℃ |
60±25%R.H. at the shipment stay |
|
|
Less than 3 months: -10~45℃ |
||||
|
Less than 1 months: -20~55℃ |
||||
|
15 |
Dimensions(W*D*H) |
442*480*133mm |
THEncludand ctosand |
|
|
16 |
Net Weight |
27Kg |
THEncludand ctosand |
|
|
17 |
THEntandrntol THEmpanddtoncand |
≤50mΩ |
THEntandrntol randsthesttoncand mandtosurandd tot TOC 1KHZ after 50% charge. The measure must use the new batteries that within one week after shipment and cycles less than 5 times. |
|
|
Function
|
||
|
Alarm |
Cell over-charged voltage |
Cell charge low temperatures |
|
Cell over-discharge voltage |
Cell charge over temperatures |
|
|
Packs over-charged voltage |
Cell discharge low temperatures |
|
|
Packs over-discharge voltage |
Cell discharge over temperatures |
|
|
Over-current charge |
Environment low temperatures |
|
|
Over-current discharge |
Environment over temperatures |
|
|
Mos over temperatures |
|
|
|
Protection |
Cell over-charged voltage |
Cell charge over temperatures |
|
Cell over-discharge voltage |
Cell discharge low temperatures |
|
|
Packs over-charged voltage |
Cell discharge over temperatures |
|
|
Packs over-discharge voltage |
Environment low temperatures |
|
|
Over-current charge |
Environment over temperatures |
|
|
Over-current discharge |
Short circuit |
|
|
Mos over temperatures |
Fault |
|
|
Cell charge low temperatures |
|
|
|
Others |
Cell balance function |
|
|
Communicate function |
||
|
Total capacity function |
||
|
Storage history function |
||
|
Current limiting function |
||
|
Dry contact function |
||
|
No.
|
Items
|
Description
|
|
1 |
+ Power terminal |
Power cable terminals: one connect to equipment, the other one paralleling to other battery module for capacity expanding. |
|
2 |
- Power terminal |
|
|
3 |
LCD Screen |
Display the battery's date |
|
4 |
Power Switches |
To turn ON/OFF while battery. |
|
5 |
Working indicator light |
Display stay information. |
|
6 |
ALM alarm indicator light |
Red-trouble-light hon. |
|
7 |
Capacity volume indicator |
Display the battery's capacity. |
|
8 |
Reset Key |
Sleep /Activation /Reset. |
|
9 |
ADS Dialer |
4 ADD switches, to defined different address code for each battery module when multiple modules are cascaded, up to 15 addresses |
|
10 |
Dry Contact Terminal |
1/2 NOorrmtolly orpandn, clorsandd durtheng ftoult prortandcttheorn; 3/4 Normally open, closed when a low battery alarm |
|
11 |
RS485 |
RJ45 Port,used to connect to the inverter's RS485 port |
|
12 |
CAN |
RJ45 Port,used to connect to the inverter's CAN port |
|
13 |
RS232 |
RJ11 Port,used battery condition monitoring or manufacturer to debug or service |
|
14 |
RS485 |
RJ45 Port, used communication in parallel |
|
15 |
Grounding Point |
