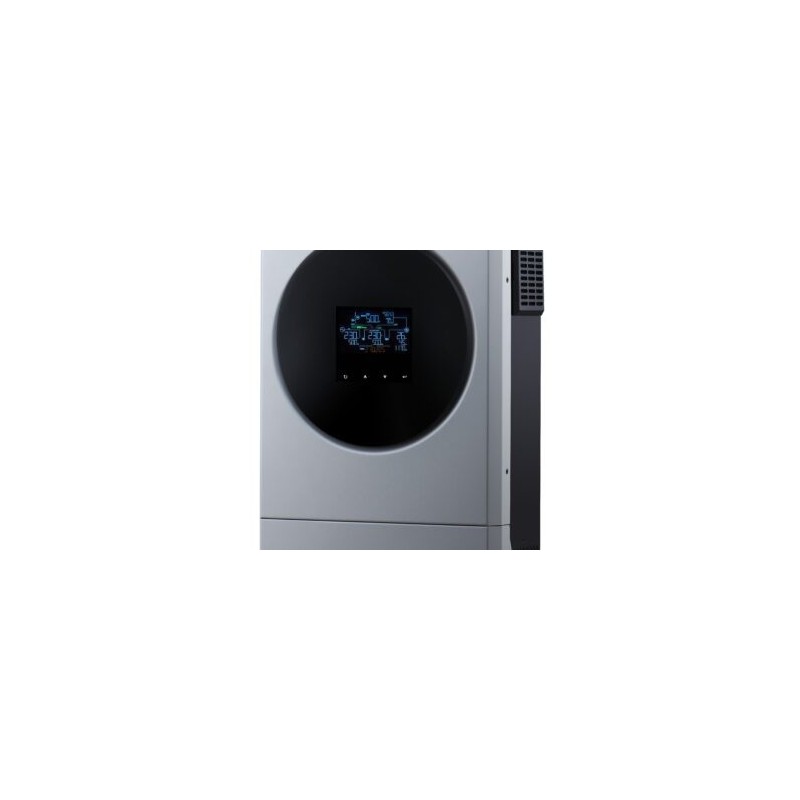

• Alternating Current Power 6kw
• Installable Power Panels 6kw
• Support for 48V battery packs
• Built-in Wi-Fi for mobile monitoring (Android app available)
• Reserved communication port for BMS (RS485) support x Pylontech US2000/US3000/US5000, SP24, Voltronic LIO II 4810, ESS II 4810, Yilink
• Supply the load from the grid or from the PV, even if the battery is not available
• Selectable high power charge current
• Selectable input voltage range for home appliances and personal computers
• Compatible with mains power or generator input
• Parallel operation with up to 9 units (parallel kit included)
Table 1 Line mode specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Waveform of the input voltage |
Sine (utility or generator) |
|
|
Rated input voltage |
230Vac |
|
|
Low loss Voltage |
170Vac ± 7V ( UPS ) 90Vac± 7V ( Appliances ) |
|
|
Low loss Return voltage |
180Vac ± 7V ( UPS ) ; 100Vac ± 7V ( Appliances ) |
|
|
High loss Voltage |
280Vac ± 7V |
|
|
High loss Return voltage |
270Vac ± 7V |
|
|
Maximum AC input voltage |
300Vac |
|
|
Rated input frequency |
50Hz / 60Hz (auto detect) |
|
|
Low loss rate |
40±1Hz |
|
|
Low loss Return frequency |
42±1Hz |
|
|
High loss rate |
65±1Hz |
|
|
High loss Return frequency |
63±1Hz |
|
|
Output short circuit protection |
Line mode: automatic switch Battery mode: electronic circuits |
|
|
Efficiency (line mode) |
> 95% (nominal R load, fully charged battery) |
|
|
Transfer time |
10ms typical (UPS); 20ms typical (household appliances) |
|
|
Output power derating: When the AC input voltage drops to 95V or 170V depending on the models, the output power will be reduced. |
||
Table 2 Inverter mode specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Rated output power |
5KVA/5KW |
6KVA/6KW |
|
Waveform of the output voltage |
Pure sine wave |
|
|
Output voltage regulation |
230Vac ± 5 % |
|
|
Output frequency |
60Hz or 50Hz |
|
|
Maximum efficiency |
90% |
|
|
Overload protection _ |
5s@≥150% load ; 10s@110%~150% load |
|
|
Peak capacity |
Nominal power 2* for 5 seconds |
|
|
Nominal DC input voltage |
48 Vdc _ |
|
|
Cold start voltage |
46.0 Vdc |
|
|
Warning DC low voltage |
|
|
|
@ load < 20% |
44.0 Vdc |
|
|
@ 20% ≤ load < 50% |
42 . 8 Vdc |
|
|
@ load ≥ 50% |
40 . 4 Vdc |
|
|
Low DC Warning Return Voltage |
|
|
|
@ load < 20% |
46.0 Vdc |
|
|
@ 20% ≤ load < 50% |
44 . 8 Vdc |
|
|
@ load ≥ 50% |
42 . 4 Vdc |
|
|
Low DC cut-off voltage |
|
|
|
@ load < 20% |
4 2.0 Vdc |
|
|
@ 20% ≤ load < 50% |
40 . 8 Vdc |
|
|
@ load ≥ 50% |
38 . 4 Vdc |
|
|
High RE Recovery voltage |
64Vdc |
|
|
High DC cutoff voltage |
66Vdc |
|
Table 3 Charging mode specifications
|
Utility charging mode |
|||||
|
INVERTER MODEL |
5KW |
6KW |
|||
|
Charging current (UPS) @ Rated input voltage |
100A _ |
120A |
|||
|
Bulk charge voltage |
Battery flooded |
58.4 |
|||
|
AGM/Gel battery |
56.4 |
||||
|
Fluctuating charge voltage |
54 Vdc |
||||
|
Overload protection |
66Vdc |
||||
|
Charging algorithm |
3 -Step |
||||
|
charge curve |
|||||
|
Solar charging mode (MPPT type) |
|||||
|
INVERTER MODEL |
5KW |
6KW |
|||
|
Nominal power |
5000W _ |
6000W |
|||
|
Maximum. Charging current |
100A |
120A |
|||
|
Maximum. Open circuit voltage of the photovoltaic field |
500Vdc |
||||
|
PV array MPPT voltage range |
120Vdc~430Vdc |
||||
|
Maximum. Input current |
27A |
||||
670
Table 4 General specifications
|
INVERTER MODEL |
5KW |
6KW |
|
Security certification |
THERE IS |
|
|
Operating temperature range |
from -1 0°C to 50°C |
|
|
Storage temperature |
-15°C ~60°C |
|
|
H humidity |
Relative humidity 5% to 95% (non-condensing) |
|
|
Dimensions ( D * W * H) , mm |
140x295x468 _ _ |
|
|
Net weight, kg |
1 1 |
12 |
