Description
Pure sinusoidal wave inverter
Configurable color with integrated RGB LED bar
Integrated Wi-Fi for mobile monitoring (PP is required)
Supports On-the-Go USB function
Optional output 12 V CC
Integrated anti-repuscle kit
Removable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)...

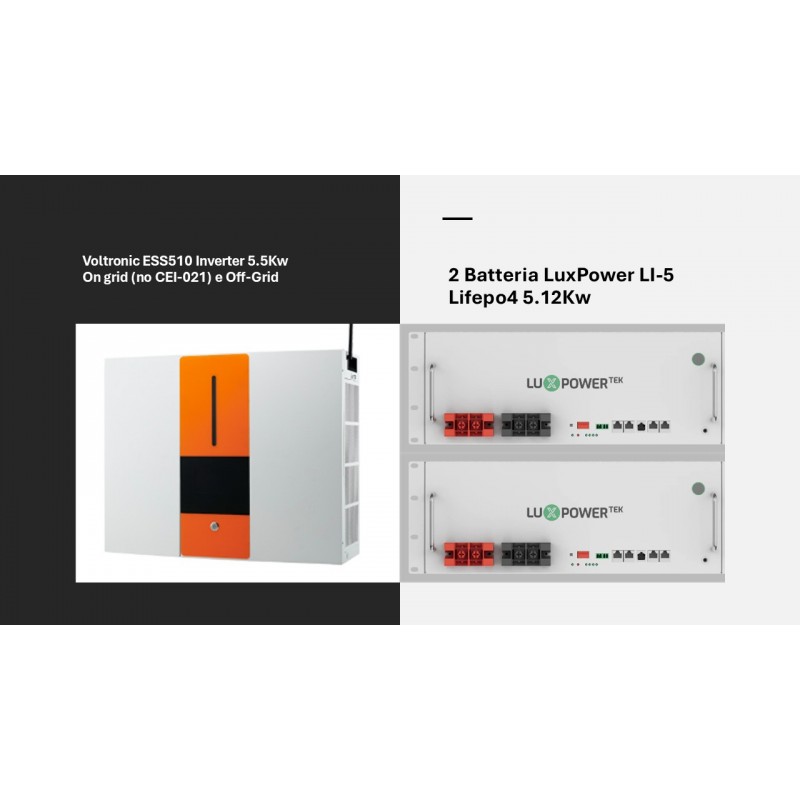

Voltronic ESS510 Energy Storage System Inverter 5.5Kw and Lifepo4 Battery 5.12Kw
• Integrated Inverter and LifePO4 battery module • Pure sine wave output • Self-consumption and Feedback to the Network •Programmable power priority for PV, battery or grid •User adjustable battery charge current •Multiple programmable operating modes: Grid-tie, off-grid and grid-tie with backup •Built-in timer for various on/off operating modes •Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi •Monitoring software for viewing and checking real-time status • Upgrade AC/Solar charger to 100A •Scalable Li-ion battery expansion (up to 10 x 5.12kw batteries) •VDE 4105 and other certifications for on-grid installations
ESS510 ENERGY STORAGE SYSTEM
MODEL
ESS 5.5KW
Maximum PV Input Power
6500W
Rated Output Power
5500W
Maximum Charging Power
2880W
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
360VDC / 500VDC
Start-up Voltage / Initial Feeding Voltage
116VDC / 150VDC
MPP Voltage Range
120VDC ~ 450VDC
Number of MPP Trackers / Maximum Input Current
2/2 x 13A
GRID OUTPUTS
Nominal Output Voltage
208/220/230/240VAC
Output Voltage Range
184 - 264.5VAC*
Max. Output Current
23.9A*
Maximum Conversion Efficiency (DC/AC)
96%
European Efficiency @ Vnominal
95%
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
120 - 140VAC / 180VAC
Acceptable Input Voltage Range
170 -280VAC
Maximum AC Input Current
40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
208/220/230/240VAC
Maximum Conversion Efficiency (DC/AC)
93%
BATTERY & CHARGER
Nominal DC Voltage
48VDC
Maximum Charging Current
100A
PHYSICAL
Dimension, DXWXH (mm)
214x621x500
Net Weight (kgs)
25
BATTERY MODULES
ESS II-4810
CAPACITY
5120Wh
PARAMETERS
Normal Voltage
51.2VDC
Full Charge Voltage(FC)
56V
Full Discharge Voltage(FD)
42V
Typical Capacity
100 Ah
Max Continuous Discharging Current
150A
Max Discharging Current
192A at 1min
Protection
BMS, breakers
Charge Voltage
56V
Charge Current
20A (0.2C)
Maximum charge current
50A (0.5C)
Standard charge method
0.2C CC (Constant current) charge to FC, CV (Contstant voltage FC) charge till charge current decline to
Inner Resistance
≤20m ohms
PHYSICAL
Dimension, DXWXH (mm)
214x621x550
Net Weight (kgs)
55
*These figures may vary depending on different AC voltage and country regulation.
Product specifications are subject to change without further notice
