• Split core
• Safe operation
• Mini in size
• Very easy to mount
• Wide inner window
• Wide range of size for all existing installation
• Primary current from 5A to 600A
• 5A secondary output
Description

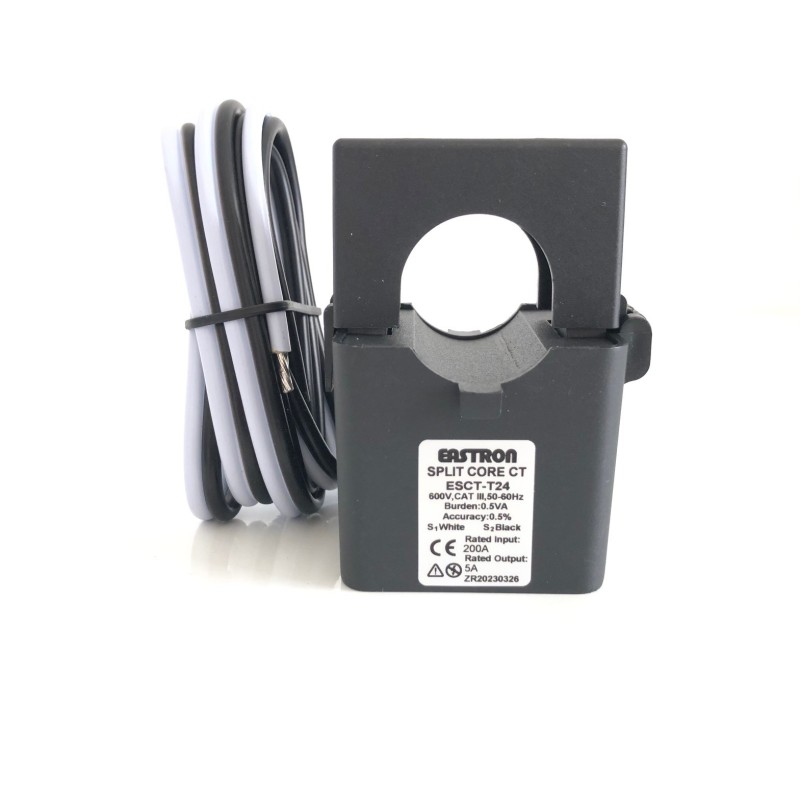

The Eastron ESCT-T series of split core current transformers are designed for fast and easy installation. The split core deign permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken off line and disconnected for CT installation. This method authorized a safer easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and authorized safe opening of the secondary circuit.
Specifications
|
Frequency
|
50-60Hz
|
|
Rated current
|
5A to 600A loads
|
|
Rated output
|
5A or 1A (AC)
|
|
Accuracy
|
±1% from 20% to 120% of rated current
|
|
Phase angle
|
less than 2 degrees at 50% of rated current
|
|
Insulation voltage
|
600Vac
|
|
Dielectric strength
|
2.5KV/ 1mA/1min
|
|
Operating temperature
|
-15°c to 60°c
|
|
Operating temperature
|
< 85%
|
|
Case material
|
PC/UL94-V0
|
|
Bobbin
|
PBT
|
|
Core
|
Permalloy
|
|
Internal structure
|
Epoxy
|
|
Lead
|
UL 1015, Twisted Pair, 22AWG
|
Application
*Current measurement, monitoring and protection for electrical wiring and equipment
*Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, aircondition equipment and automation.
*Current, power and energy monitoring device
*Relay protection device
Type Selection
|
Type
|
Class
|
Rat
|
|
|
|
ESCT-T24-5
|
1
|
100, 150, 200, 250, 300A / 5A
|
|
|
|
ESCT-T24-1
|
1
|
100,150, 200, 250, 300A /1A
|
|
|
|
ESCT36-5
|
1
|
100, 150, 200, 300, 400, 500, 600 / 5A
|
|
|
|
ESCT-T36-1
|
1
|
100, 150, 200, 300, 400, 500, 600/ 1A
|
|
|
