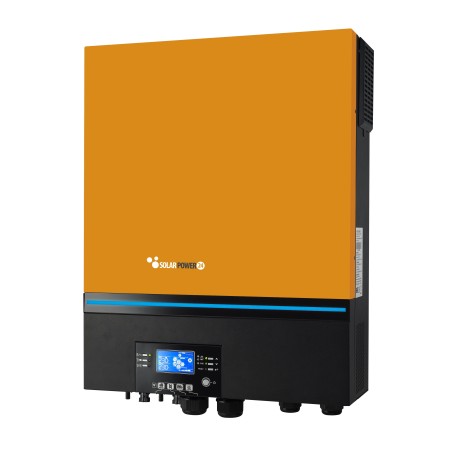

Primo Axpert MAX 8000-48 Inverter 8kw 48 volt off grid island Photovoltaic inverter for hybrid off grid island systems
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android / iOS app available)
• Support USB On-the-Go function
• Communication port reserved for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC / PV output usage priority and timer
• Selectable high power charge current
• Selectable input voltage range for home appliances and personal computers
• Communication with BMS battery Pylontech US2000/US3000
• Compatible with mains or generator input
• Built-in dust kit
• Optional DC output for DC fan, LED bulb, router and so on.
• Parallel operation with 6 units for 7.2/8.0 model
| Axpert MAX Specification | |
| TEMPLATE | Axpert MAX 8000-48-230 |
| AC power in watts | 8000VA*/8000W |
| Can be installed in parallel | YES, max 6 units |
| INPUT | |
| Voltage | 230VAC |
| Voltage range | 170-280VAC (For Computers) |
| 90-280VAC (For Home Appliances) | |
| Frequency | |
| AC output | |
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% |
| AC peak power | 15000VA |
| Efficiency (Peak) | 90%~93% |
| Switching time | 15ms (For Personal Computers), 20ms (For Home Appliances) |
| Wave type | Pure sine wave |
| Inverter consumption without loads | |
| Battery | |
| Voltage | 48VDC |
| Float charge voltage | 54VDC |
| Overload protection voltage | 66VDC |
| Solar Charge and AC Charge | |
| Solar charger type | MPPT x 2 |
| Maximum power that can be installed panels | 8000W |
| Operating voltage of MPPT panels | 90~430VDC |
| Maximum installation voltage VOC | 450VDC |
| Maximum solar charging current | 120A |
| Maximum AC charge current | 120A |
| INDICATORS | |
| AC Mode | |
| Battery Mode | |
| Fault | |
| ALARM | |
| Low Battery | |
| Overloading | |
| BatteryReplacement | |
| Fault | |
| Maximum total charge current | 120A |
| Size, weight and ports | |
| Dimension, DXWXH (mm) | 143 x 420 x 531 |
| Net Weight (kgs) | 16 |
| Communication Interface | USB/RS232/RS485/Wifi/Dry contact |
| OPERATING ENVIRONMENT | |
| humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperatures | -15℃ to 60℃ |
| STANDARD |
Data sheet
