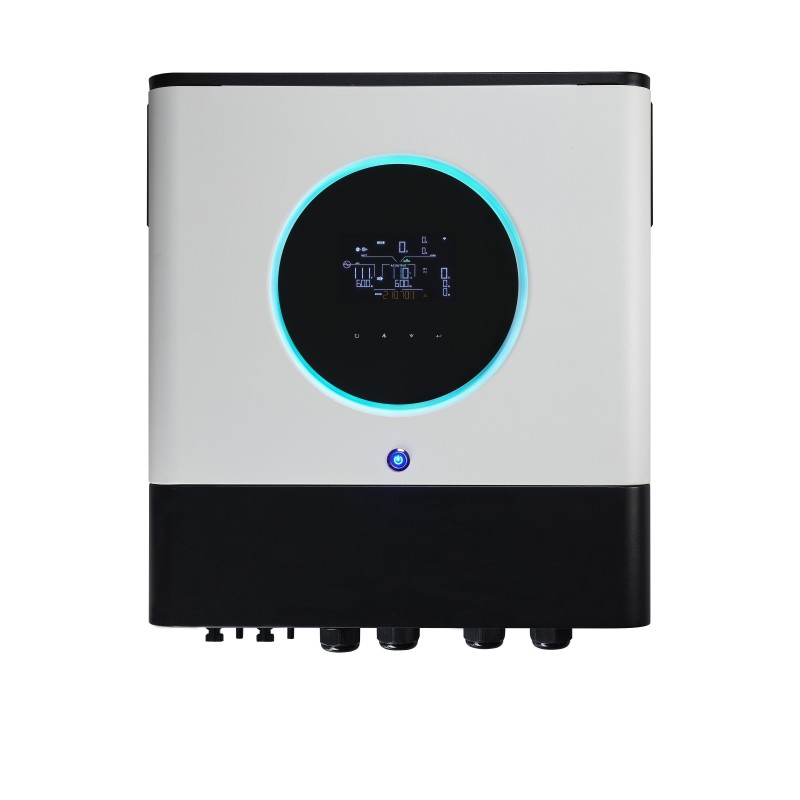

Voltronic Axpert Max II 10K-48 10000 Watt 48 Volt Solar Inverter Photovoltaic Island

TEMPLATE

10KW

Input voltage waveform

Sinusoidal (AC mains or generator)

Rated input voltage

230Vac

Low voltage drop

170Vac±7V (UPS)

90Vac±7V (equipment)

Low Return Voltage Drop

180Vac ±7V (UPS);

100Vac ±7V (Equipment)

High voltage drop

280Vac±7V

High Return Voltage Drop

270Vac±7V

Max. AC input voltage

300Vac

Max. AC Input Current

60A

Nominal input frequency

50Hz / 60Hz (Autodetect)

Low Frequency Drop

40±1Hz

Low Return Voltage Drop

42±1Hz

High Frequency Fall

65±1Hz

High Return Voltage Drop

63±1Hz

Output short circuit protection

Line Mode: RCD (70A)

Battery Mode: Electronic Circuits

Efficiency (Line Mode)

>95% (nominal load R, battery fully charged)

Duration of transfer

10ms typical (UPS);

20ms typical (equipment);

Output power reduction:

If the AC input voltage drops below 170V, the output power will be reduced.

TEMPLATE

10KW

Rated output power

10000W

Output voltage waveform

Pure sine wave

Output voltage regulation

230Vac±5%

Output frequency

60Hz or 50Hz

Peak efficiency

93%

Overload protection

100ms@≥205%load;5s@≥150%load; 10s@110%~150% load

Overload capability

2* Rated power for 5 seconds

Low DC alarm voltage

46.0Vdc

42.8Vdc

40.4Vdc

@ load

@ 20% ≤ load

@ load ≥ 50%

Low DC Alarm Return Voltage

48.0Vdc

44.8Vdc

42.4Vdc

@ load

@ 20% ≤ load

@ load ≥ 50%

Low DC cutoff voltage

44.0Vdc

40.8Vdc

38.4Vdc

@ load

@ 20% ≤ load

@ load ≥ 50%

High Recovery DC Voltage

61Vdc

High DC cutoff voltage

63Vdc

DC voltage accuracy

+/-0.3V@ no load

THD extension

DC offset

≦100mV

No-load consumption

AC Grid Charge Mode

TEMPLATE

10KW

Charging current (UPS)

@Nominal input voltage

150A (@V _I/P =230Vac)

Bulk Charge Voltage

Lead-acid battery

58.4Vdc

AGM/Gel battery

56.4Vdc

Charge float voltage

54Vdc

Overload protection

63Vdc

Charging algorithm

3 steps

charge curve

Solar entrance

TEMPLATE

10KW

Nominal power

10000W

Max. PV Array Open Circuit Voltage

500Vdc

PV array MPPT voltage range

90Vdc~450Vdc

Max. Input current

18A x 2

Starting voltage

80V +/- 5Vdc

Power limitation
