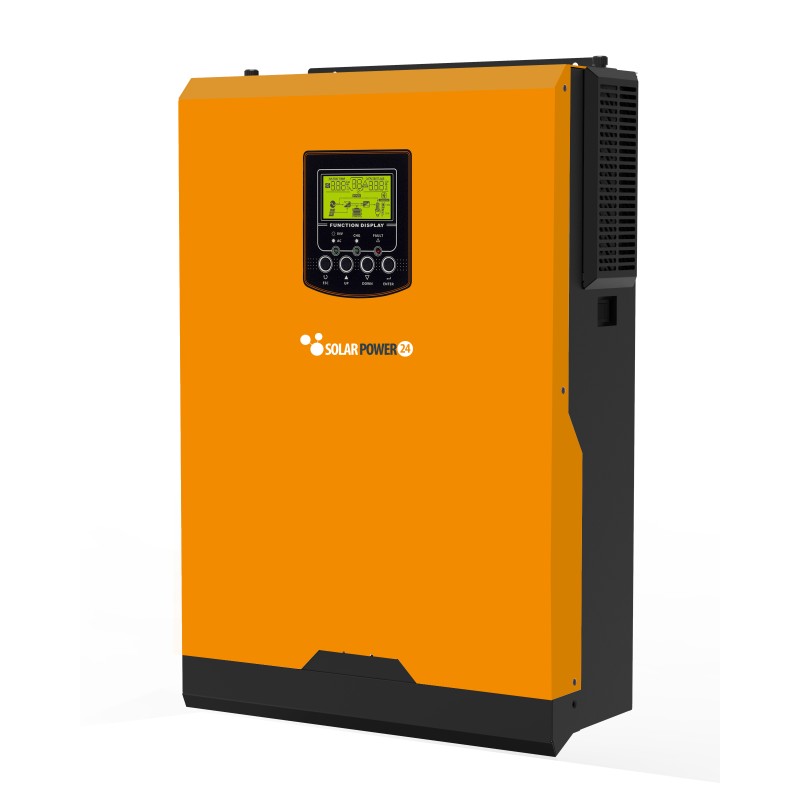

INVERTER MODEL

1.2KVA

2 . 5KVA

3KVA

5KVA

Input voltage waveform

Sinusoidal (AC mains or generator)

Rated input voltage

230Vac

Low voltage drop

170Vac±7V (UPS);

90Vac±7V (equipment)

Low Return Voltage Drop

180Vac ±7V (UPS);

100Vac ±7V (Equipment)

High voltage drop

280Vac±7V

High Return Voltage Drop

270Vac±7V

Max. AC input voltage

300Vac

Nominal input frequency

50Hz / 60Hz (Autodetect)

Low Frequency Drop

40±1Hz

Low Return Rate Drop

42±1Hz

Fall Frequency High

65±1Hz

High Return Voltage Drop

63±1Hz

Output short circuit protection

Differential

Efficiency (Line Mode)

>95% (nominal load R, battery fully charged)

Duration of transfer

10ms typical (UPS);

20ms typical (equipment);

Output power reduction

If the AC input voltage drops to 170V, the output power will be reduced.

INVERTER MODEL

1.2KVA

2 . 5KVA

3KVA

5KVA

Rated output power

1.2KVA/ 1.2KW

2.5KVA/ 2.5KW

3KVA/3KW

5KVA/5KW

Output voltage waveform

Pure sine wave

Output voltage regulation

230Vac±5%

Output frequency

50Hz

Peak efficiency

93%

Overload protection

5s@≥130% load; 10s@105%~130% load

Overload capability

2* Rated power for 5 seconds

Nominal DC input voltage

12Vdc

24Vdc

48Vdc

Cold start voltage

11.5Vdc

23.0Vdc

46.0Vdc

Low DC alarm voltage

@ load < 50%

11.5Vdc

23.0Vdc

46.0Vdc

@ load ≥ 50%

11.0Vdc

22.0Vdc

44.0Vdc

Low DC Alarm Return Voltage

@ load < 50%

11.7Vdc

23.5Vdc

47.0Vdc

@ load ≥ 50%

11.5Vdc

23.0Vdc

46.0Vdc

Low DC cutoff voltage

@ load < 50%

10.7Vdc

21.5Vdc

43.0Vdc

@ load ≥ 50%

10.5Vdc

21.0Vdc

42.0Vdc

DC High Recovery Voltage

15Vdc

31Vdc

62Vdc

DC High Cutoff Voltage

16Vdc

32Vdc

63Vdc

No-load consumption

<35W

<50W

AC Grid Charge Mode

INVERTER MODEL

1.2KVA

2 . 5KVA

3KVA

5KVA

Charging algorithm

3-Step

AC charge current (max.)

80Amp (@VI/P=230Vac)

100Amp

Bulk charge voltage

Flooded battery

14.6

29.2

58.4

AGM/Gel battery

14.1

28.2

56.4

Float voltage

13.5Vdc

27Vdc

54Vdc

charge curve

MPPT Solar Charge Mode

INVERTER MODEL

1.2KVA

2 . 5KVA

3KVA

5KVA

Max. PV array power

2000W

3000W

5000W

Nominal PV voltage

240Vdc

320Vdc

Starting voltage

70Vdc +/- 10Vdc

150Vdc +/- 10Vdc

PV array MPPT voltage range

60~300Vdc

60~400Vdc

120~450Vdc

Max. PV Array Open Circuit Voltage

350Vdc

450Vdc

500Vdc

Max. Input current

13Amp

18Amp

Maximum charge current

(AC charger plus solar charger)

100Amp
